Example of SendEmailAdvanced in SharePoint

Send Email functionality

Introduction

Send Email functionality in AppForms allows you to send an email along with\without attachments, so that the receiver will receive that email as soon as the button is triggered.

Prerequisite: SMTP should be configured in SharePoint Central Admin.

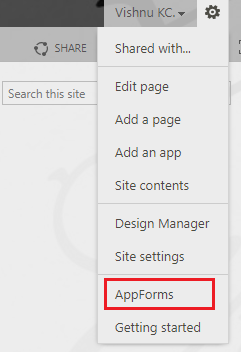

Step 1: Select the Feature AppForms as shown in Figure 1.

Figure 1

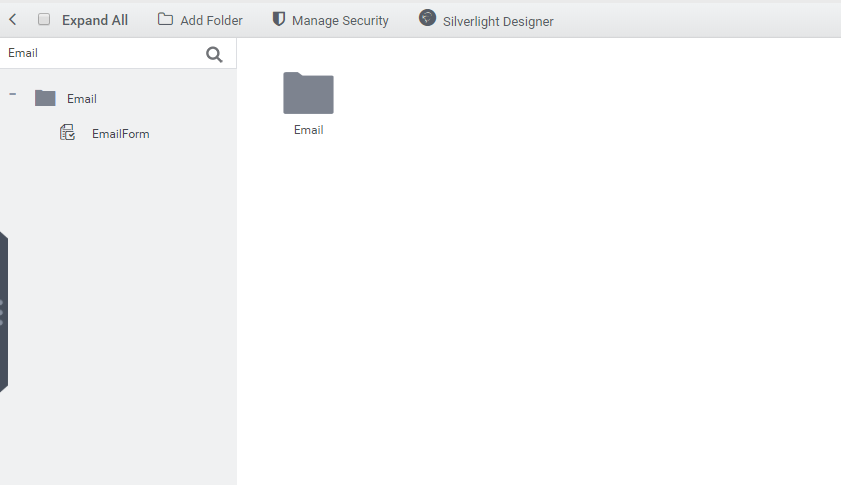

Step 2:  Create a New Folder and within that folder create a New Form.

Figure 2

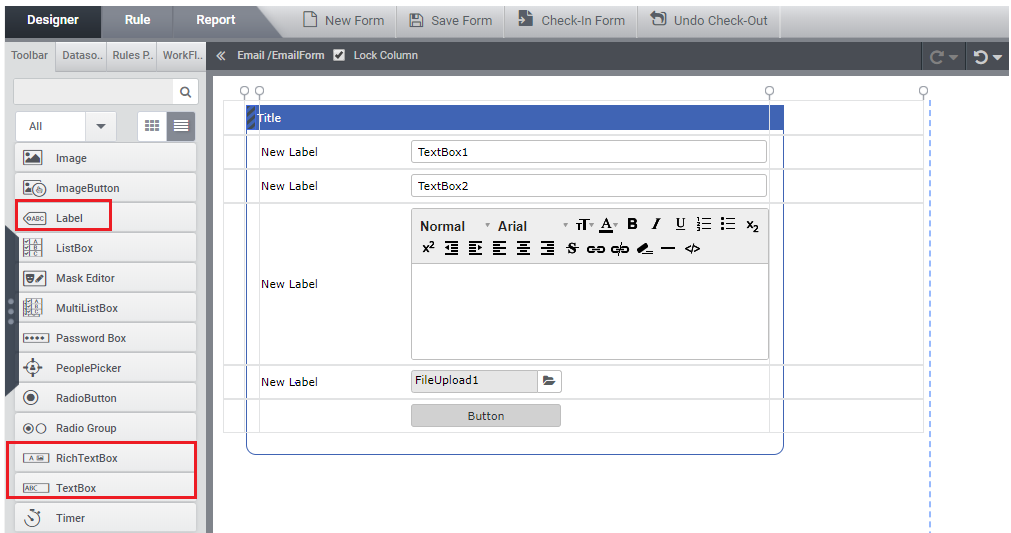

Step 3: Open the form and drag the controls like ‘TextBox’, ‘Label’, ‘Rich Text Box’, ‘Button’ and ‘Border’ to design the form as shown in Figure 3.

Figure 3

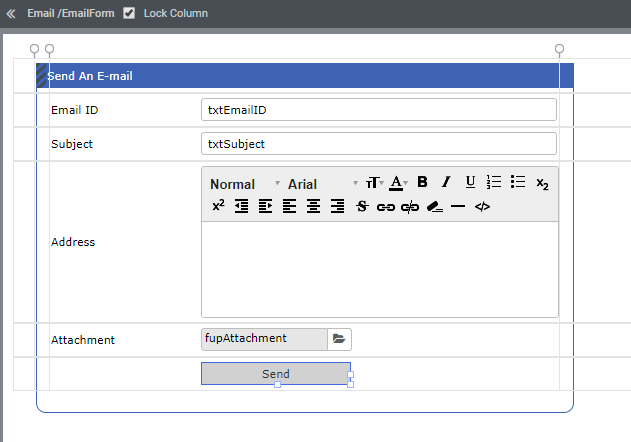

Step 4: Rename the controls as per the necessity, so that the finalized form will look like the one below.

Figure 4: Designer

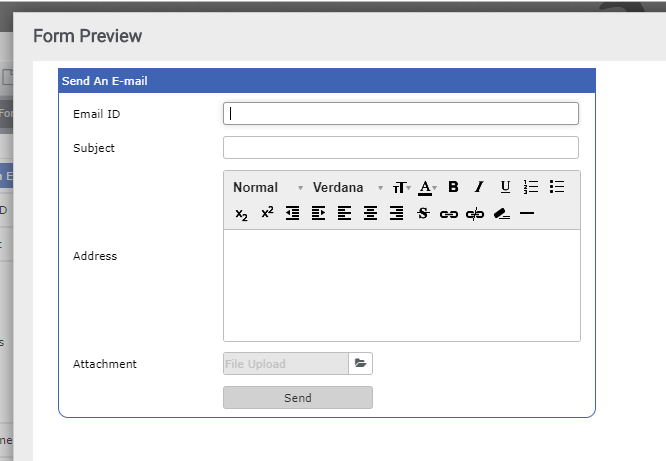

Figure 5: Preview

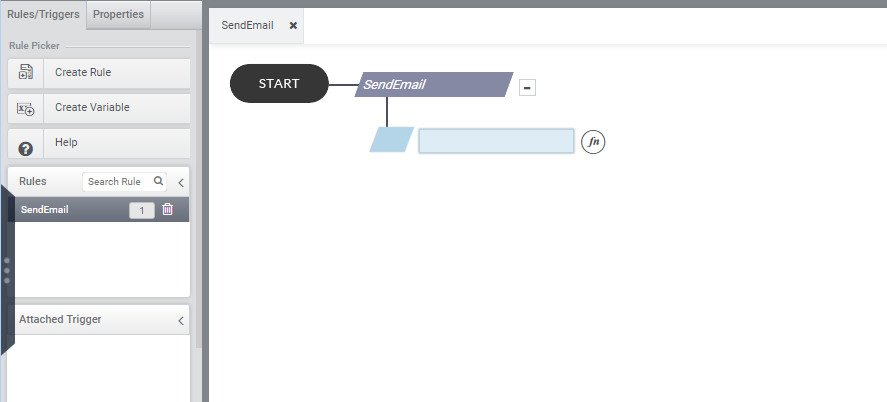

Step 5:Navigate to Rule tab and click ‘Create Rule’ to create a new rule and add an action.

Figure 6: Rule Tab

Step 6: Using ‘Expression builder’ generate the send email rule as per the below mentioned syntax and set a trigger to activate the rule.

Syntax:

SendEmailAdvanced(Subject, EmailBody, ToAddress, CCAddress, BCCAddress, FileUpload, ShowMessage, Message, From)

Description
Send Mail with form

  1. Argument :Subject :>> Email subject
  2. Argument :EmailBody :>> Email Body
  3. Argument :ToAddress :>> To email address
  4. Optional Argument :CCAddress :>> CC email address
  5. Optional Argument :BCCAddress :>> BCC email address
  6. Optional Argument :Attachments :>> File attachment
  7. Optional Argument :ShowMessage :>> Set true to display custom message
  8. Optional Argument :Message :>> Message to be displayed after sending the email
  9. Optional Argument :From :>> From Addresses (optional)

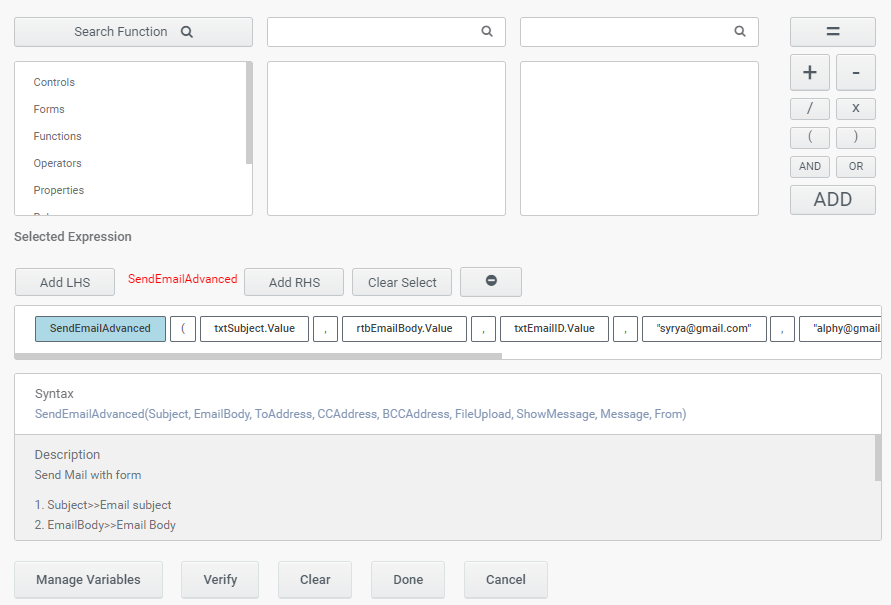

Figure 7: Expression Builder

Example:

SendEmailAdvanced(txtSubject.Value,rtbEmailBody.Value,txtEmailID.Value,”syrya@gmail.com”,”alphy@gmail.com”,fupAttachment.Value,true,”Mail sent Successfully”,”sam@gmail.com”)

Figure 8: Rule for SendEmail

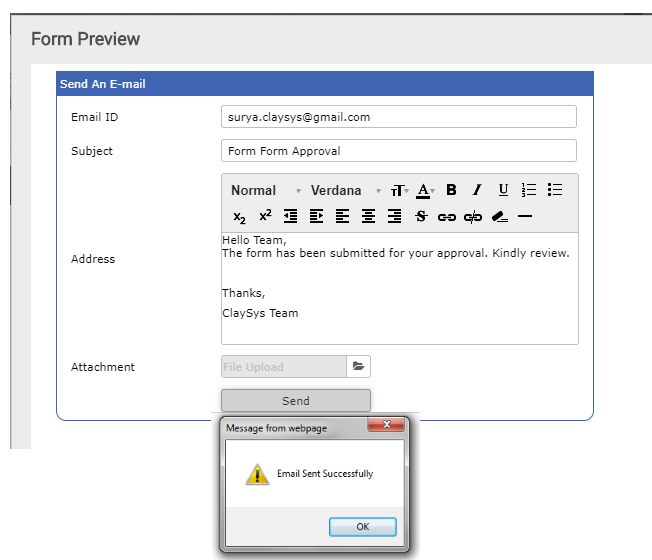

Step 7: Once the rule is set, check the preview and thereby clicking “Send“ button, which is set as a trigger, the email is sent to the corresponding recipients.

Figure 10

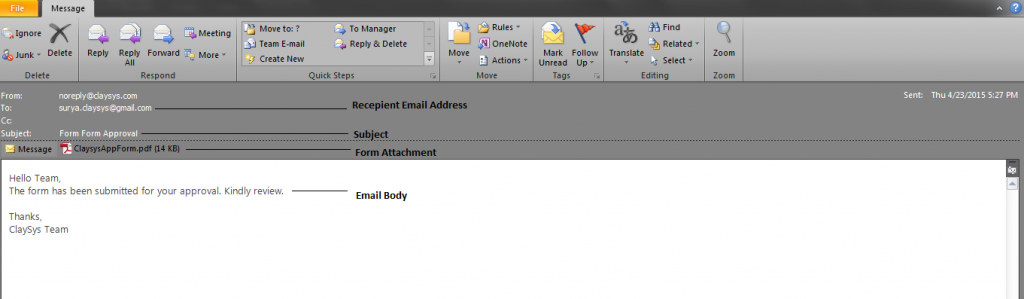

Step 8: On checking the recipient’s inbox, the email can be viewed.

Figure 11

Send an Email with files that are uploaded to the File upload control

In the ‘Send an Email’ property, the email can be send by attaching multiple files with the mail and send to the corresponding recipients.

It can be achieved by adding\configuring a file upload control into the form.

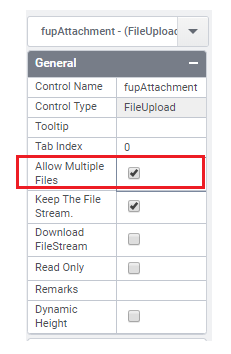

Step 9: In the properties of the ‘File Upload’ control, click the checkbox of ‘Allow Multiple File’.

Figure 12

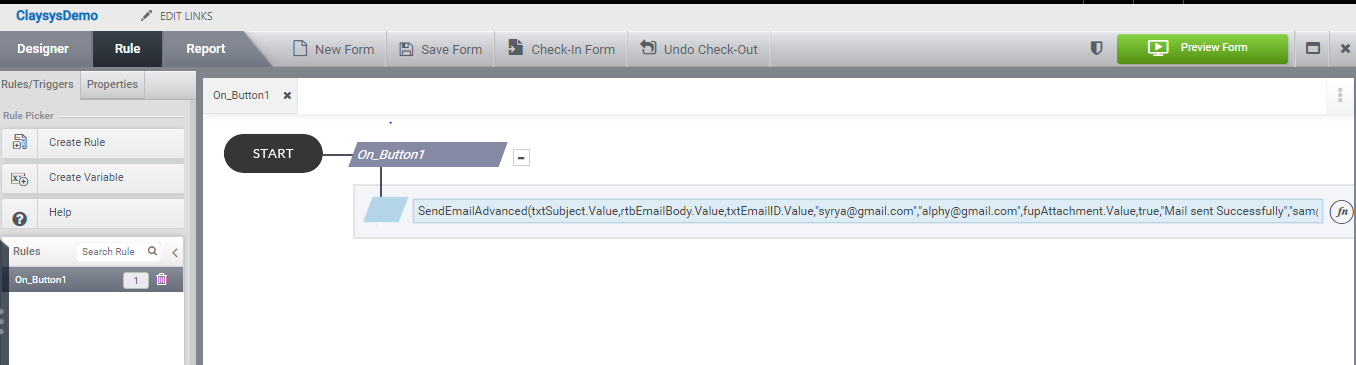

Step 10: The rule is set as shown in Figure 13

Example:

SendEmailAdvanced(txtSubject.Value,rtbEmailBody.Value,txtEmailID.Value,”syrya@gmail.com”,”alphy@gmail.com”,fupAttachment.Value,true,”Mail sent Successfully”,”sam@gmail.com”)

Figure 13

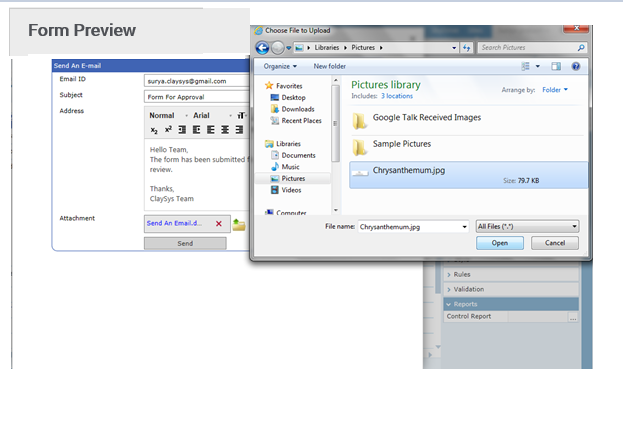

Step 11: Check the ‘Preview’ and enter the values and upload the files into file upload control, as shown in figure below. And click ‘Send’.

Figure 14

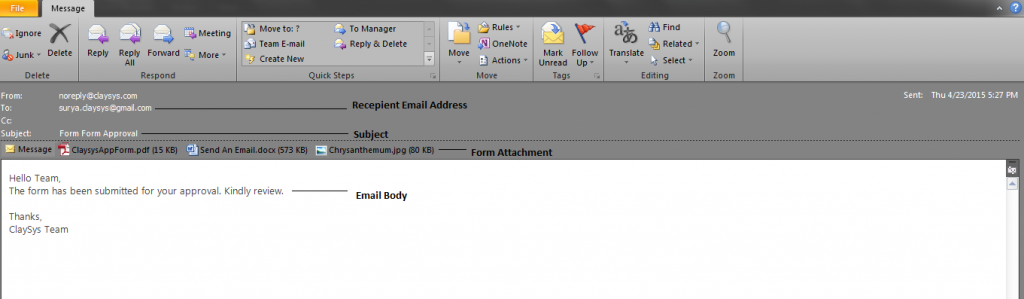

Step 12: On checking the recipient’s inbox, the email can be viewed like the one below.

Figure 15
