This a particular setting available in ClaySys AppForms which allow a user to analyze each request and response going to an External WebService. This is helpful for a user when the user needs to know if the system is sending the correct request and getting the correct response back from the server.

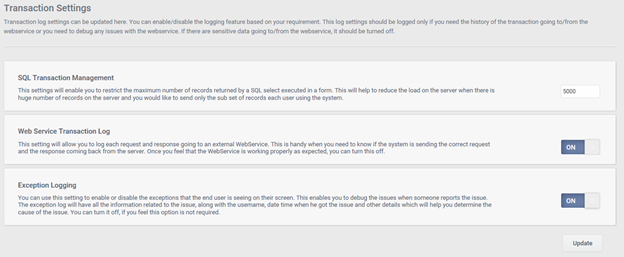

A User can turn ON and OFF the Transaction settings from the links tab available in AppForms.

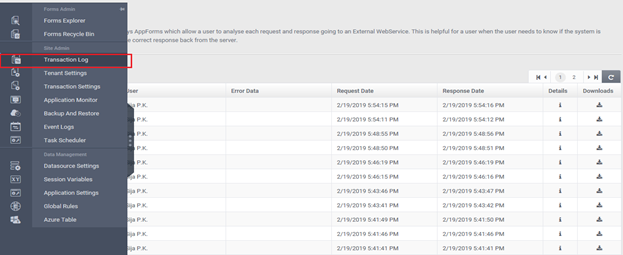

Click on the Links tab and then the Transaction Settings menu tab to get the Transaction menu options.

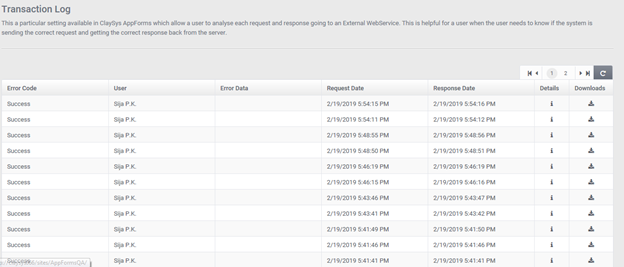

Once turned ON, the user will get the log details of the each request and response going to an External WebService by clicking the Transaction Log tab.

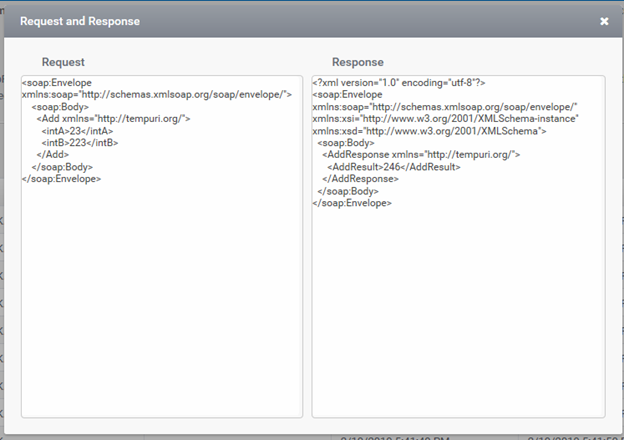

To get the details of the request and response going to an External WebService click on the Details option on that particular log detail. A window will be popped up giving both Request SOAP and Response SOAP.
Additionally a user can get the Request date and Response date, Error Data for failed logs from the Transaction Log window.
