GUID

Our world is numbered. Books have ISBNs and products have barcodes. Cars have VINs. Even we, The Human Beings have social security numbers. A GUID is a bigger version of this type of ID number. GUID () is the abbreviation for Globally Unique Identifier. It is a 128-bit integer number used to identify resources. This will be generated as a set of alphanumeric characters. GUIDs give you a unique serial number that can be used on any item in the universe. GUID’s are used as database keys, component identifiers, or just about anywhere else a truly unique identifier is required.


The function, GUID () is also compatible with the AppForms.
Given below are the steps explains the functionality of GUID.

Example:
Step1: Create a form and a corresponding table, in order to explain the function ‘GUID ()’. Here we consider a ‘Maintenance Request Form’ with with a ‘button’ control.

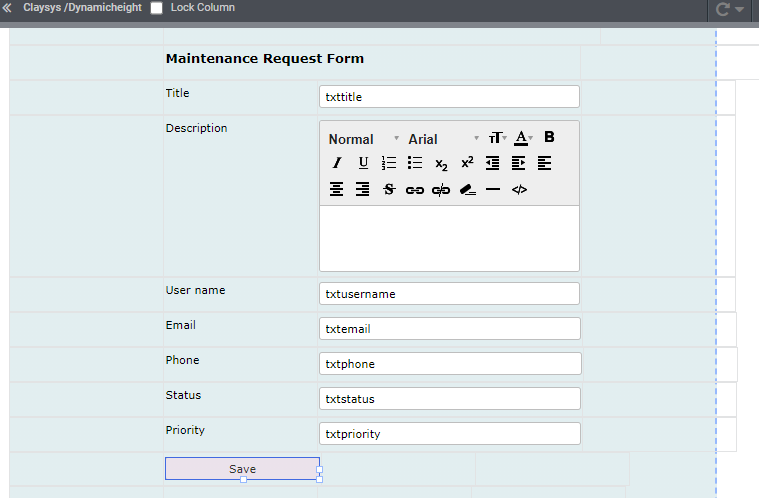

Figure 1: designer

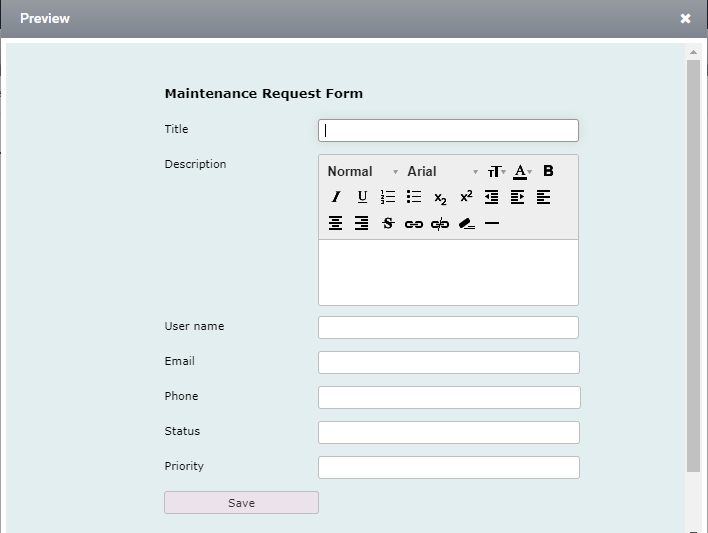

Figure 2: preview

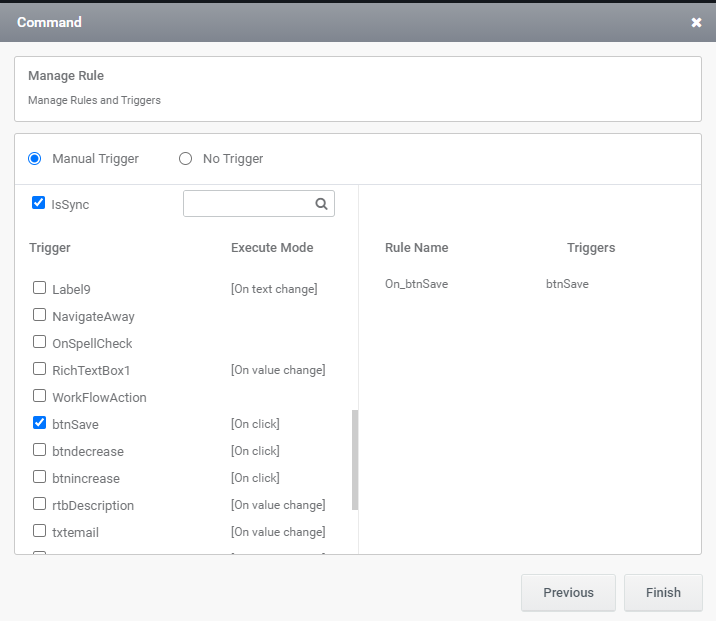

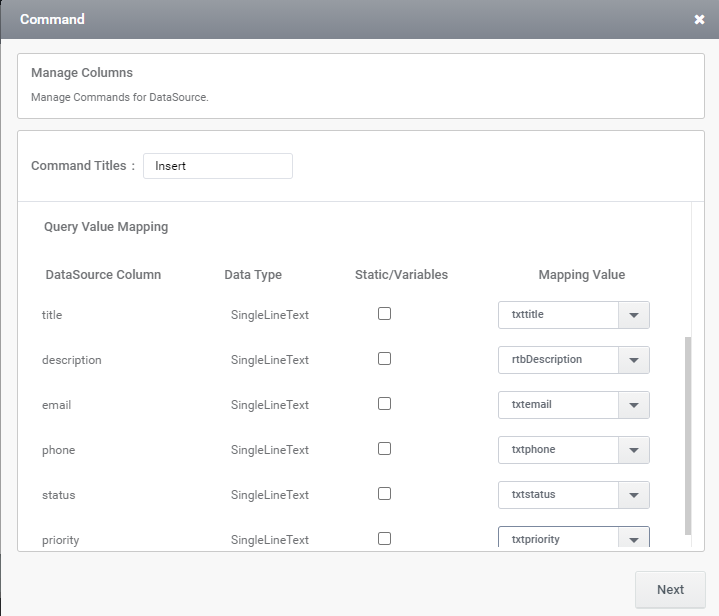

Step2: Map the controls to the respective columns and set trigger on ‘Button’ for inserting data’s into the table.

Figure 3
Figure 4

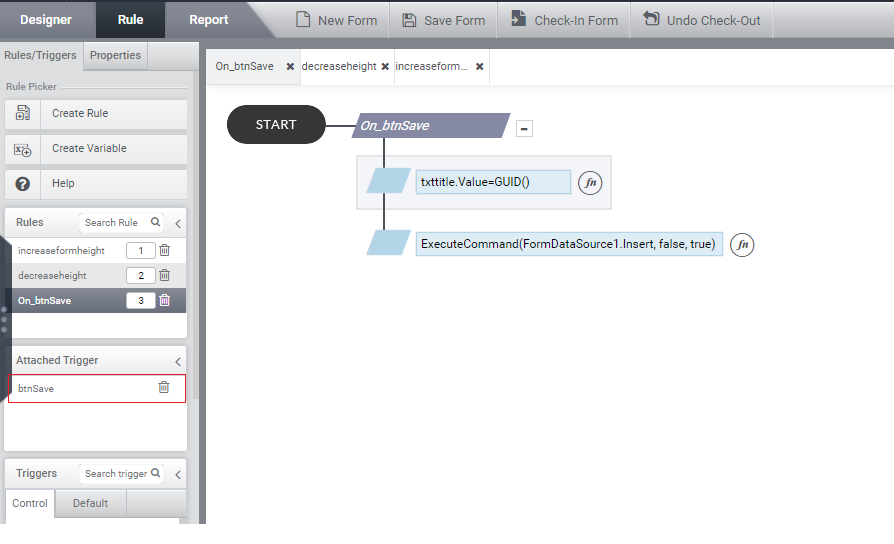

4.On giving the rule as per the below syntax, the value of the GUID can be obtained in the required control.
Syntax: controlname.value= GUID ()
Ex: txtTitle.value=GUID()
Note: ’vexeccompleted’ is a variable created.

Figure 5

 5. Save the form & check the preview of the form. On clicking on the button, in which the trigger is set, the GUID will be generated, in the control (Title).

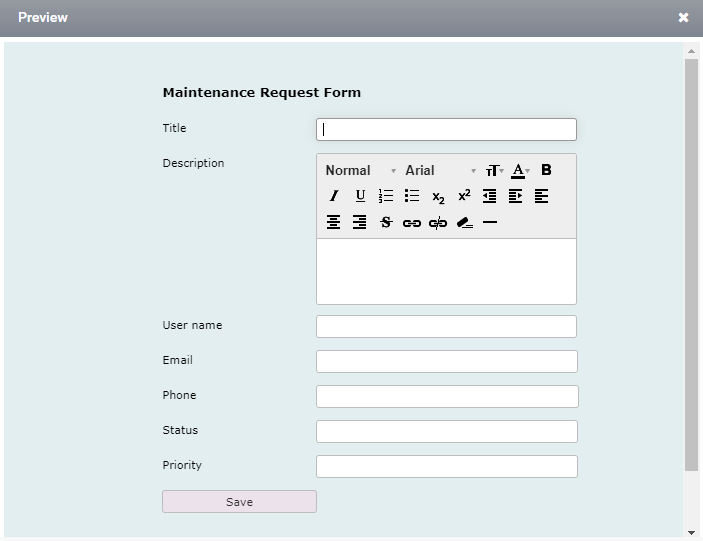

Figure 6: Before clicking on the trigger (Save Button)

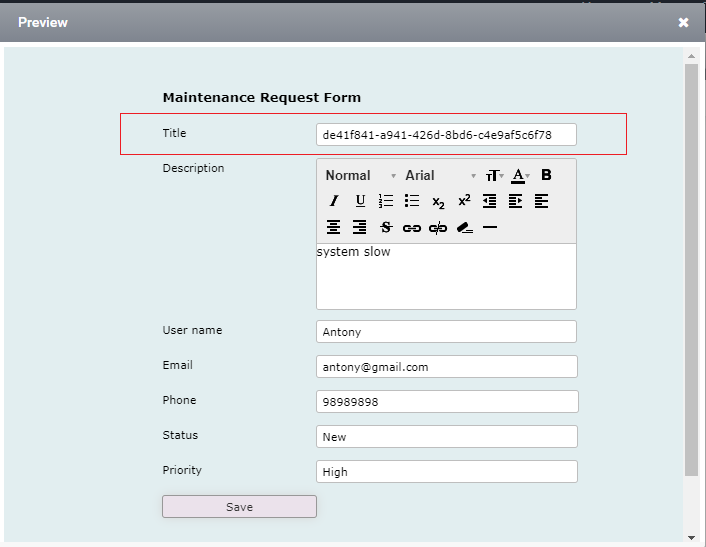

Figure 7: After clicking on the Save button

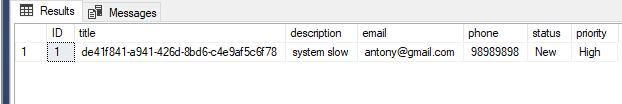

6.On analyzing, the table, the generated GUID can be viewed.

Figure 8

7.As the name suggests (GUID), a consecutive click on a triggered control generates unique ids in the form.
