SharePoint List/Library

Configuring a collection control to display values from a ‘SharePoint List ’.

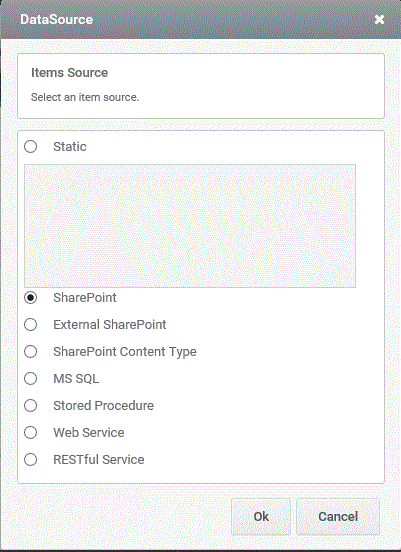

  1. A ‘Datasource’ window will pop up. Select the datasource type as ‘SharePoint’ and click on ‘OK’ button to proceed with the wizard.

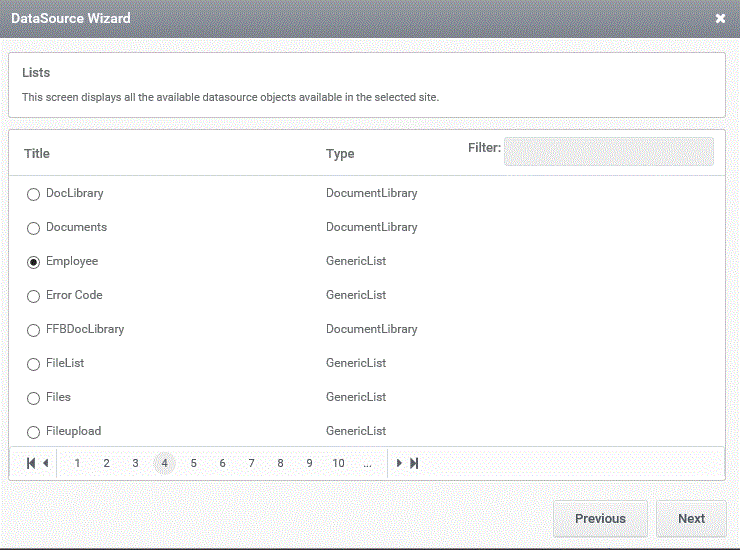

2.On selecting the datasource type, a ‘DataSource Wizard’ will pop up.

  • Select any of the available SharePoint list from the current site.
  • The user can also make use of ‘Filter’ option to search a particular SharePoint list from the available lists  in the window.
  • Click on ‘Next’ button to continue.
  • Manage the site selection on clicking ‘Previous’ button.
    • On clicking ‘Previous’ button, a list of all sites and subsites will be displayed from which the user can select the site/subsite in which the list resides.
    • By default the current site will be selected.

3.A ‘Criteria Builder’ window gets pop up.

  • Manage the criteria based on which the ListBox control has to be loaded in preview.
    • The criteria section has to be specified with a condition or value in a control configured in the form based on which selection has to be done.
    • The first drop down will contain all the column names of the list. Select the column name  based on which criteria has to be created.
    • The second drop down will contain a list of operators that are applicable for criteria satisfaction.

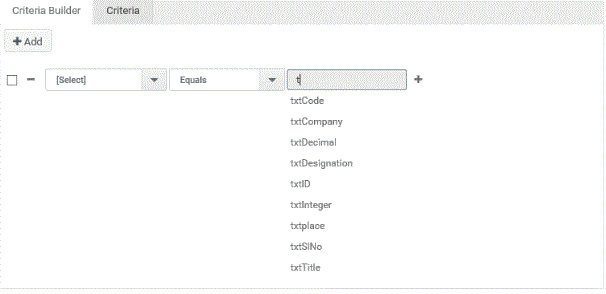

    • The third auto complete field when typed in will display the control name from which the list value has to be obtained.
    • Multiple criteria can be joined using ‘AND’ and ‘OR’.

NB: All the mapping value fields are drop downs which when text is typed in, the control names in the form are shown.

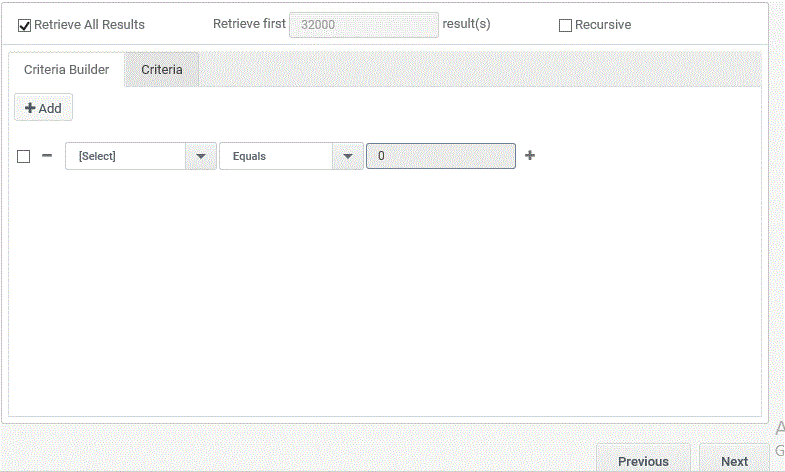

  • In this window the number of resultant rows that has to be displayed in the preview can also be managed.
    • By default the checkbox against ‘Select All Results’ will be selected ,so that all resultant rows will be loaded in the ListBox.
    • On unchecking the same checkbox,the user can manually enter the desired number of resultant rows that has to be displayed.
  • Now click on ‘Next’ button to continue with the wizard.

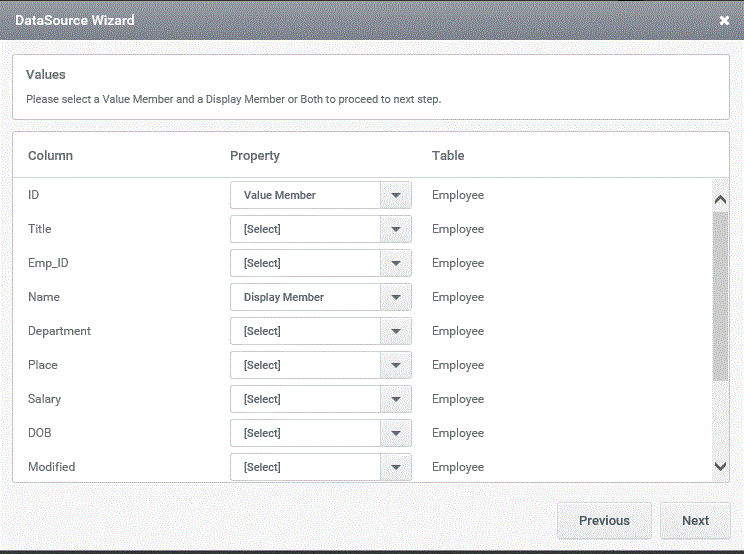

4.A ‘Values wizard’ will pop up.

  • Set a column in the list as ’Value Member’.
  • Set another column in the list as ‘Display Member’.
  • A ‘Both’ option is also available to set a same column as both the’ Value Member’ and ‘Display Member’.
  • Click on ‘Next’ button to proceed with the wizard.

5. A ‘Miscellaneous window’ will pop up.

  • Sort order for columns can be managed.
  • Click on ‘Next ‘ button

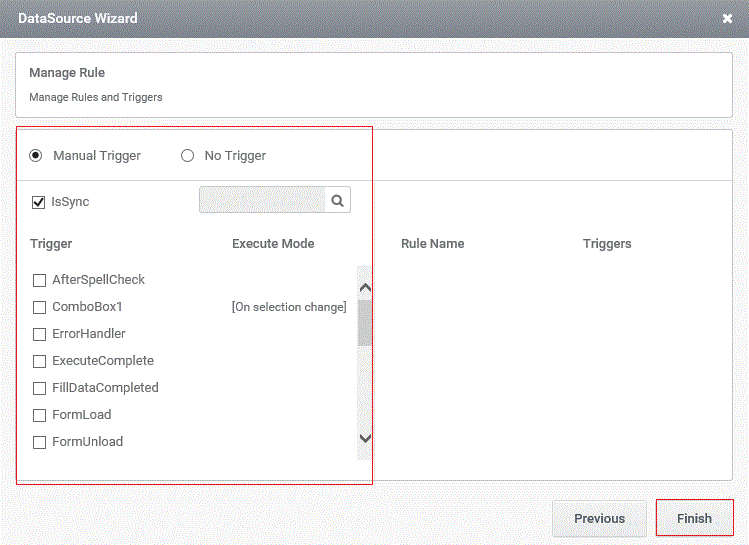

  • Managing the trigger has been already explained in the section ‘Configuring  ListBox with MS SQL’.
  • Click on ‘Finish’ button.

6. In Preview,

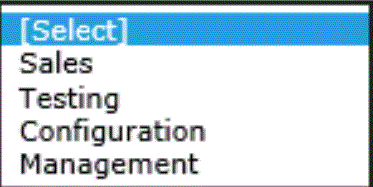

  • ListBox control gets populated with the data based on the criteria.
