Rule Execution Monitor

Rule Execution Monitor in AppForms serves as a powerful tool to oversee the entire workflow of forms created within the platform. It provides real-time monitoring of ongoing iterations, offering valuable insights into form performance. To leverage the benefits of Rule Execution Monitor, users need to follow specific setup steps outlined below.

Setting Up Rule Execution Monitor

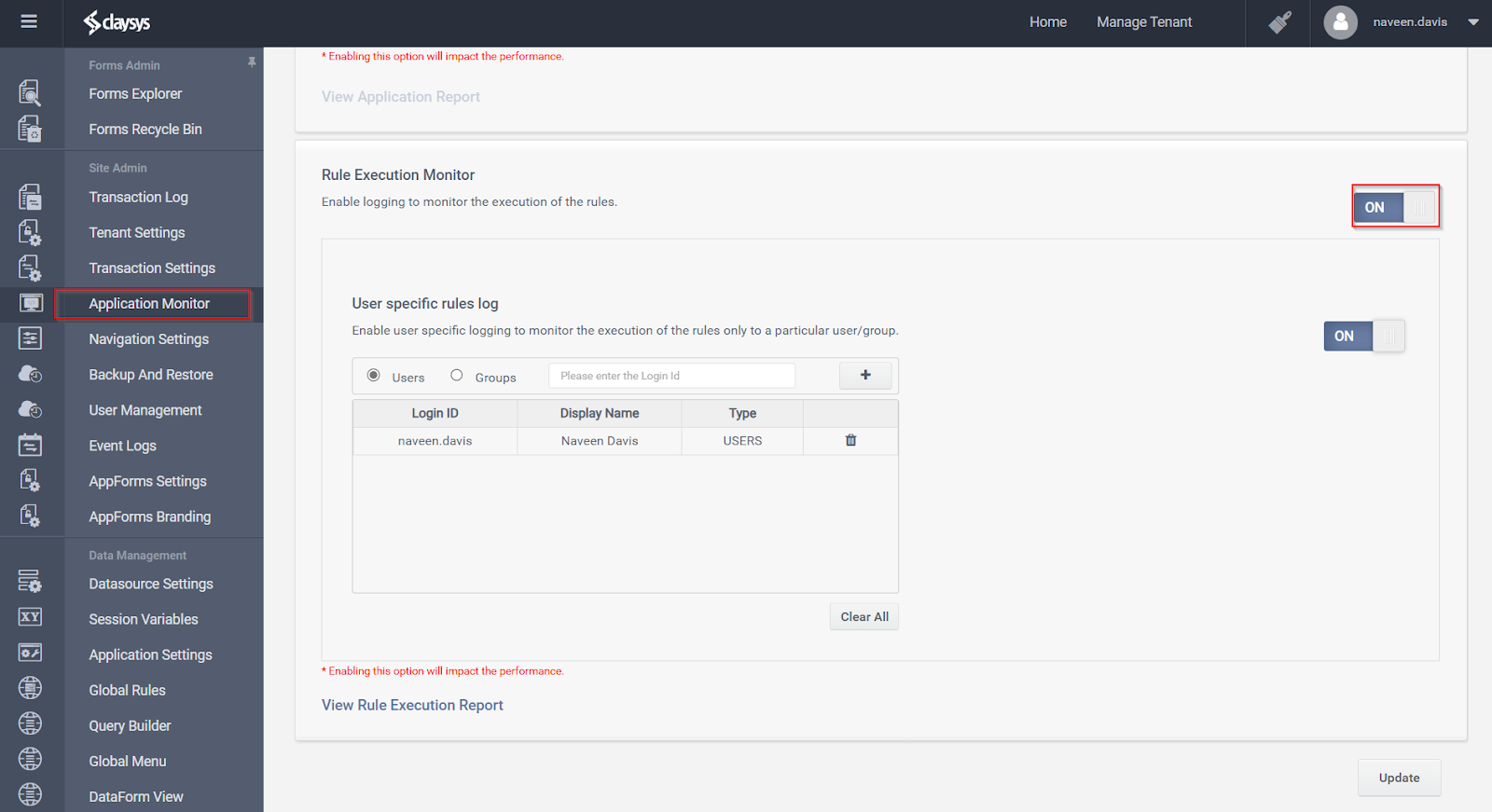

Accessing the Rule Execution Monitor in the designer interface is a straightforward process. Within the designer, navigate to the left link section and click on ‘Application Monitor.’ This action will direct you to the screen where the Rule Execution Monitor can be enabled. Toggle the ON button, and remember to click ‘Update’ to save the settings.

If you need to enable the setting for a specific user or user group, the ‘User specific rules log’ option can be activated. To add users or groups, use the search text box on the screen. Selected users can be cleared using the ‘Clear All’ button, or individual names can be deleted using the ‘Delete’ button available in the row line.

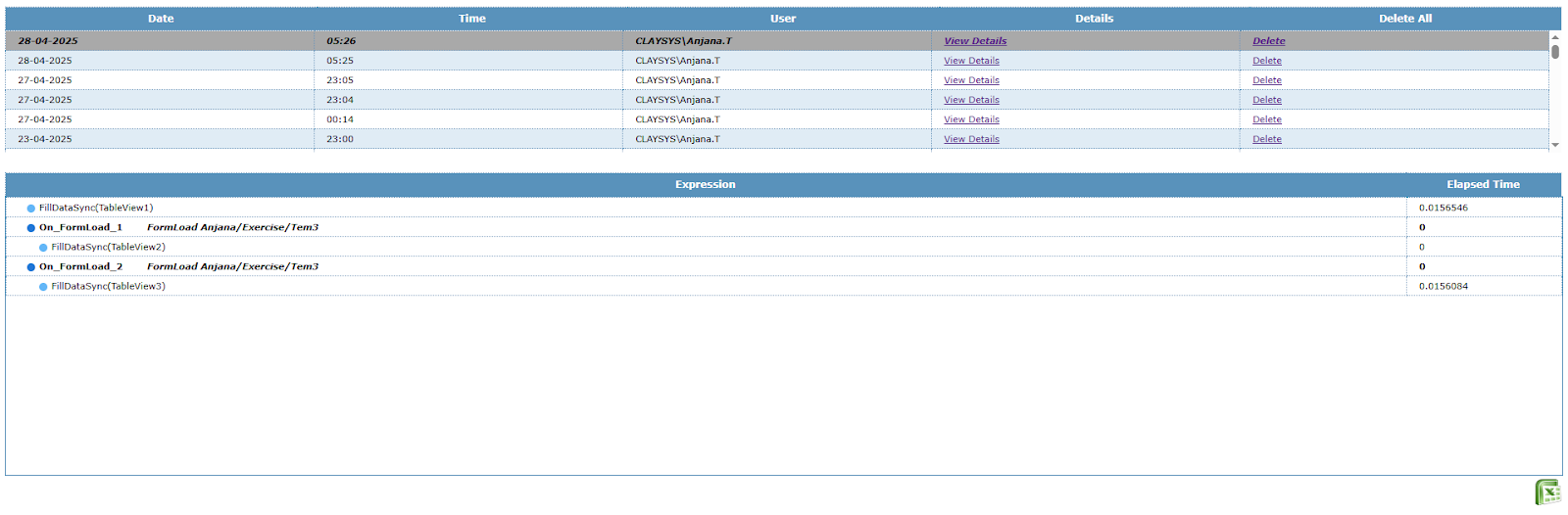

Clicking on the link “View Rule Execution Report” will redirect you to a different page where the entire flow is monitored. Each iteration is presented in the grid, and clicking on the ‘View Details’ link will provide a detailed overview of the iteration. It includes information on the time taken for each action, facilitating performance analysis of the form. The ‘Delete’ link can be used to delete a specific iteration, while the ‘Delete All’ link removes all iterations.

Clicking on the excel image button will download the report for detailed review and analysis.

Note: Properly configuring and utilizing the Rule Execution Monitor enhances form analysis and ensures effective monitoring of rule executions within the ClaySys AppForms environment.
