How to disable control/column in a dynamic grid?

How to disable control/column in a dynamic grid?

Below are the steps to enable\disable controls in a Dynamic Grid based on the users

Step 1: Drag a Dynamic Grid and configure it with three columns, namely A, B, C.

Step 2: Using Text box control, Navigate to the text box control and uncheck the Style → Enable Property.

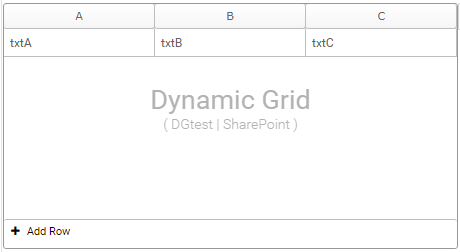

Figure 1 : Designer

Step 3:  Once after completing the designer part, use the following rule to enable\disable controls in a Dynamic Grid based on the users.

Syntax                :  GridSetCellStyle(ControlName,PropertyName,RowIndex,CoulmnIndex,Value)

Example Rule        :  GridSetCellStyle(DGTest,Enable,DGTest.RowIndex,1,true)

Function Explanation:

Rule Name                                   –        GridSetCellStyle.

DGTest (ControlName)                –        Control Name of the Dynamic Grid defined in the designer).

Enable (PropertyName)               –        To enable the textbox control placed inside Dynamic Grid.

DGTest.RowIndex (RowIndex)    –        To define the Row

1 (ColumnIndex)                          –        To define the exact column in which the cell style property has to be                                                        implemented

True\False (Value)                       –        To define whether the control needs to be enabled or disabled.

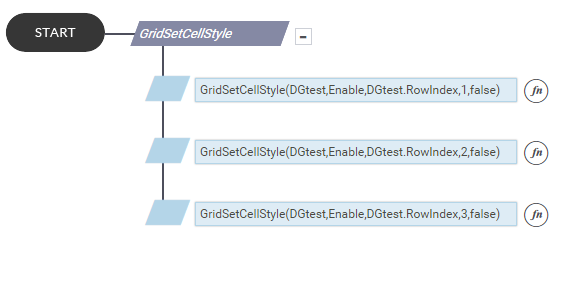

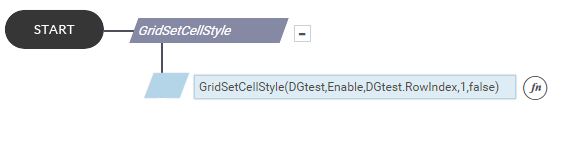

Figure 2: Rule

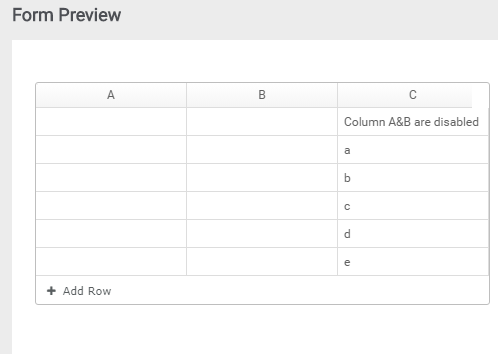

Figure 3: Form Preview
